The Rocktrix RT115BL is the beadlock version of our popular RT115 wheels. The aerofin feature of the wheels paired with forged beadlock rings create a unique and head-turning combination. Made of forged T6-6061 aluminum, the beadlock rings allows you to conquer your favorite trail at much lower tire pressure without the risk of tires de-beading. With no wheel spacers or hub adapters required, the -12 offset is approximately 2" more aggressive than your factory rims, while the -38 offset gives almost 3" more clearance for bigger, wider tires over factory wheels.
Designed for both on-road and off-road driving. For daily driving, mount tires onto the traditional bead seats. For off-road driving, secure tires using the beadlock rings.
Popular fitments include Jeep Wrangler, Gladiator, Grand Cherokee; Toyota Tacoma, 4Runner; Ford F150, F-150 Raptor. Refer to the fitment guide below to verify fitment. Compatible with majority of OEM TPMS sensors, and OEM TPMS valve stems.
Note: OEM Factory lug nuts may not be compatible. See lug nut compatibility section below, or contact us with your wheel information for assistance.
Warning: Tires secured using beadlock rings are for off-road use only may not be legal for highway use.
Tires 37" and larger may have thicker beads, requiring beadlock spacers (available separately here) to ensure even pressure during assembly and help prevent premature bolt failure. Please see our Beadlock Instruction Guide for more details.
NOTE: For Toyota vehicles, wheels will not fit the OE spare tire carriers.
| Vehicle | PCD | Bore | Size | Offset (Backspace) | Tire Size Guide |
|---|---|---|---|---|
| 2007-2018 Jeep Wrangler JK 2018+ Jeep Wrangler JL 2019+ Jeep Gladiator JT |
5x127 | 71.5 | 17x9 | -12 (4.5) | CLICK HERE |
| 17x9 | -38 (3.5) | CLICK HERE | ||
| 2004+ Ford F150 (6-Lug Trucks Only) 2022+ Ford Bronco Raptor |
6x135 | 87.1 | 17x9 | -12 (4.5) | CLICK HERE |
| 2019+ Ford Ranger 2021+ Ford Bronco |
6x139.7 | 93.1 | 17x9 | -12 (4.5) | CLICK HERE |
| 2002-2024 Toyota 4Runner (Non Manual Locking Hubs) 2001-2023 Toyota Tacoma (6-Lug Only, Non Manual Locking Hubs) 2007-2014 Toyota FJ Cruiser 1999-2006 Toyota Tundra 2001-2007 Toyota Sequoia 2010+ Lexus GX460 2003-2009 Lexus GX470 |
6x139.7 | 106.1 | 17x9 | -12 (4.5) | CLICK HERE |
|
2014-2024 Toyota 4Runner 2007-2014 Toyota FJ Cruiser 2016-2023 Toyota Tacoma 2010-2024 Lexus GX460 |
6x139.7 | 106.1 | 17x9 | -38 (3.5) | CLICK HERE |
| Bolt Pattern | Bore | Size | Offset (Backspacing) |
Finish | Wheel Weight |
Load Rating |
| 5x127 | 71.5 | 17x9 | ET -12 (4.5") | Matte Black/ Gunmetal | 34.5 lbs | 2500 lbs |
| 17x9 | ET -38 (3.5") | Matte Black/ Gunmetal | 36 lbs | 2500 lbs | |
| 6x135 | 87.1 | 17x9 | ET -12 (4.5") | Matte Black/ Gunmetal | 34.5 lbs | 2500 lbs |
| 6x139.7 | 93.1 | 17x9 | ET -12 (4.5") | Matte Black/ Gunmetal | 34 lbs | 2500 lbs |
| 6x139.7 | 106.1 | 17x9 | ET -12 (4.5") | Matte Black/ Gunmetal | 34.5 lbs | 2500 lbs |
| ET -38 (3.5") | Matte Black | 36 lbs | 2500 lbs |
| Vehicle | Lug Nut Thread Size | Lug Nut Options |
|---|---|---|
|
M14x1.5 |
Click here |
|
M14x1.5 ET | Click here |
|
1/2"x20 | Click here |
|
M14x2 | Click here |
|
M12x1.5 | Click here |
|
M12x1.5 ET |
Click here |
Important read on how to install and secure bead using bead lock ring, and warnings.
Second set I’ve purchased! Very happy with these wheels, was my first time working on beadlocks and I couldn’t be happier with the end result. Will definitely be buying more sets for future builds. I do hope 8 lug versions come soon!

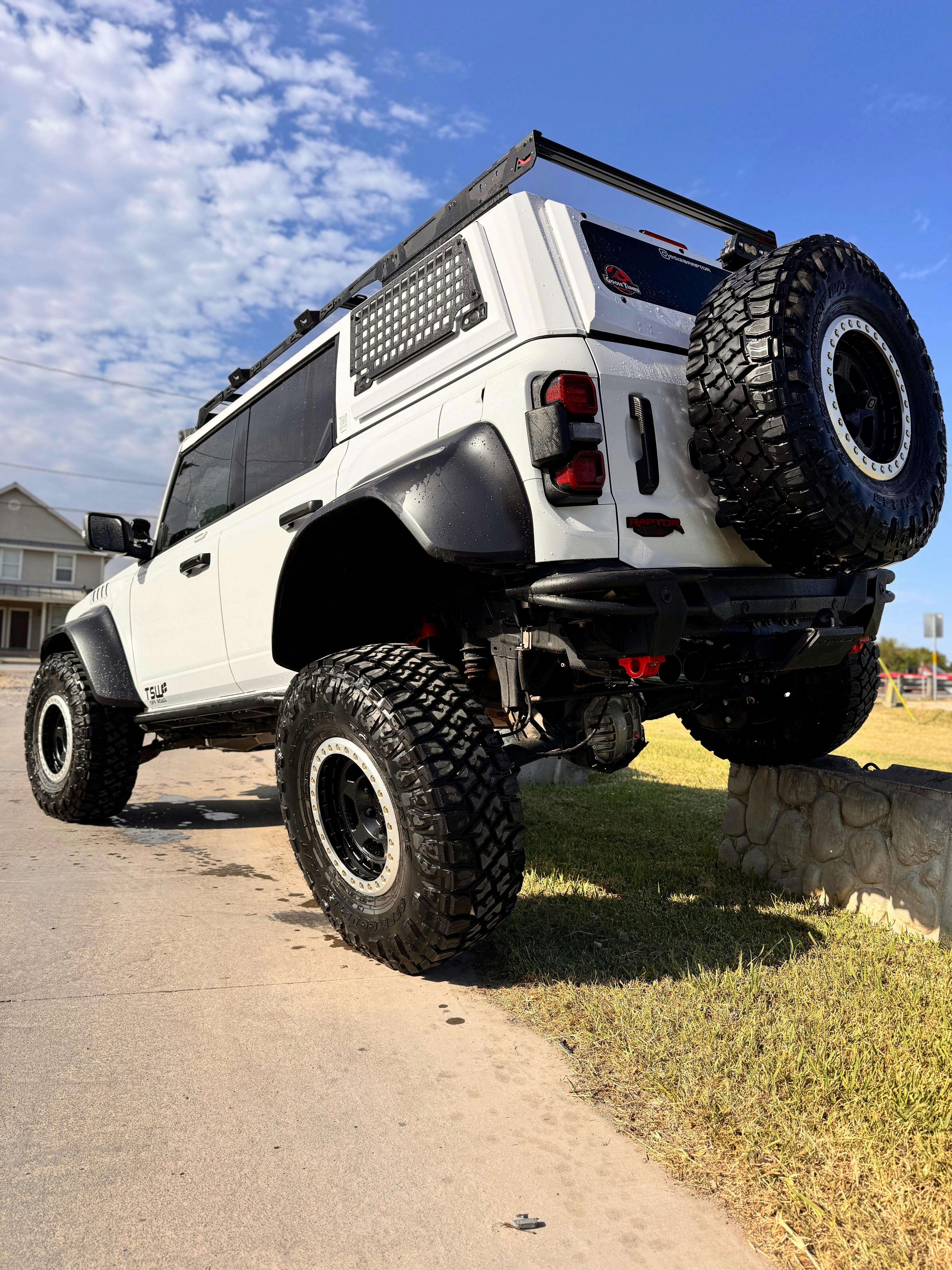

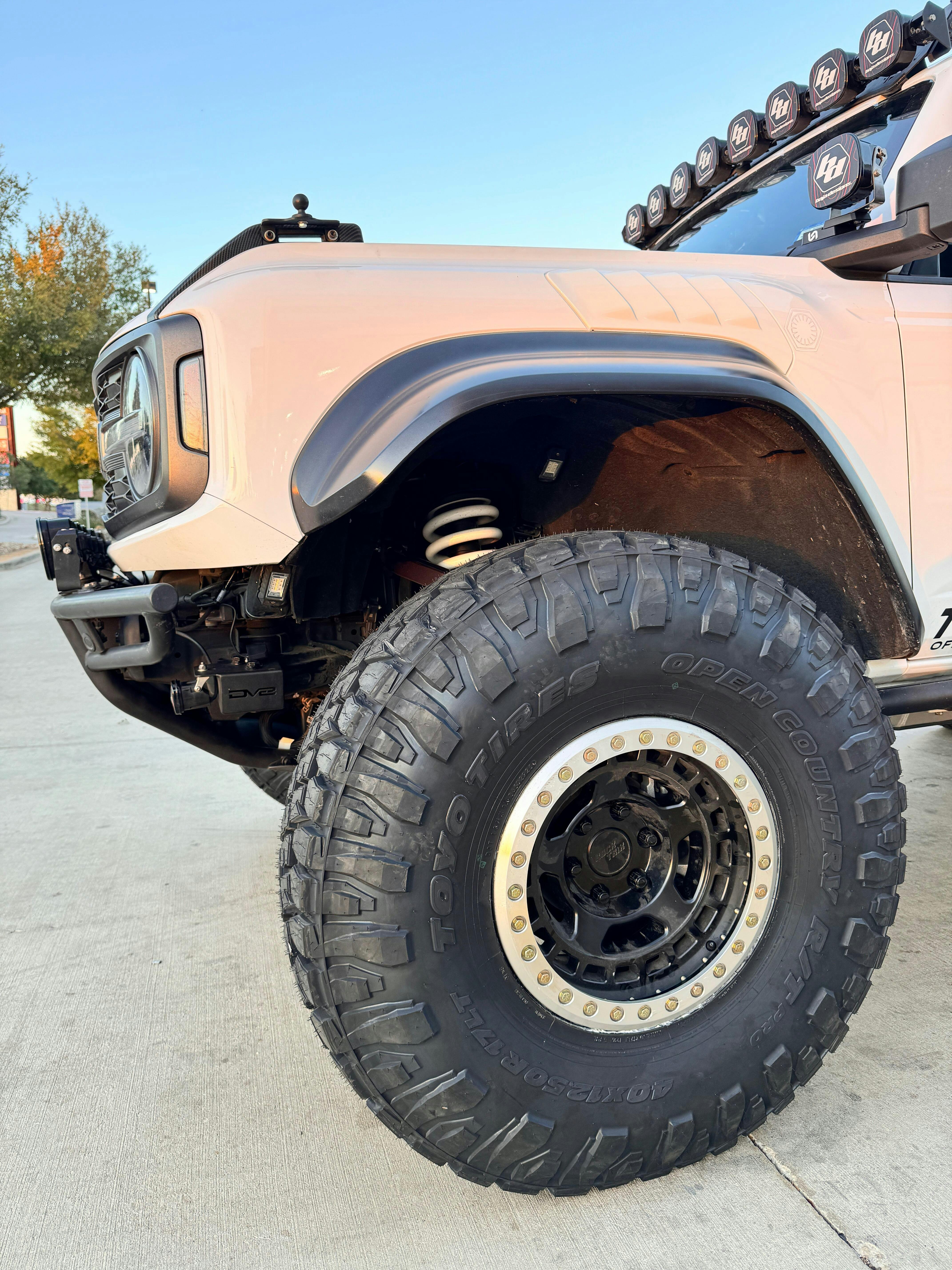

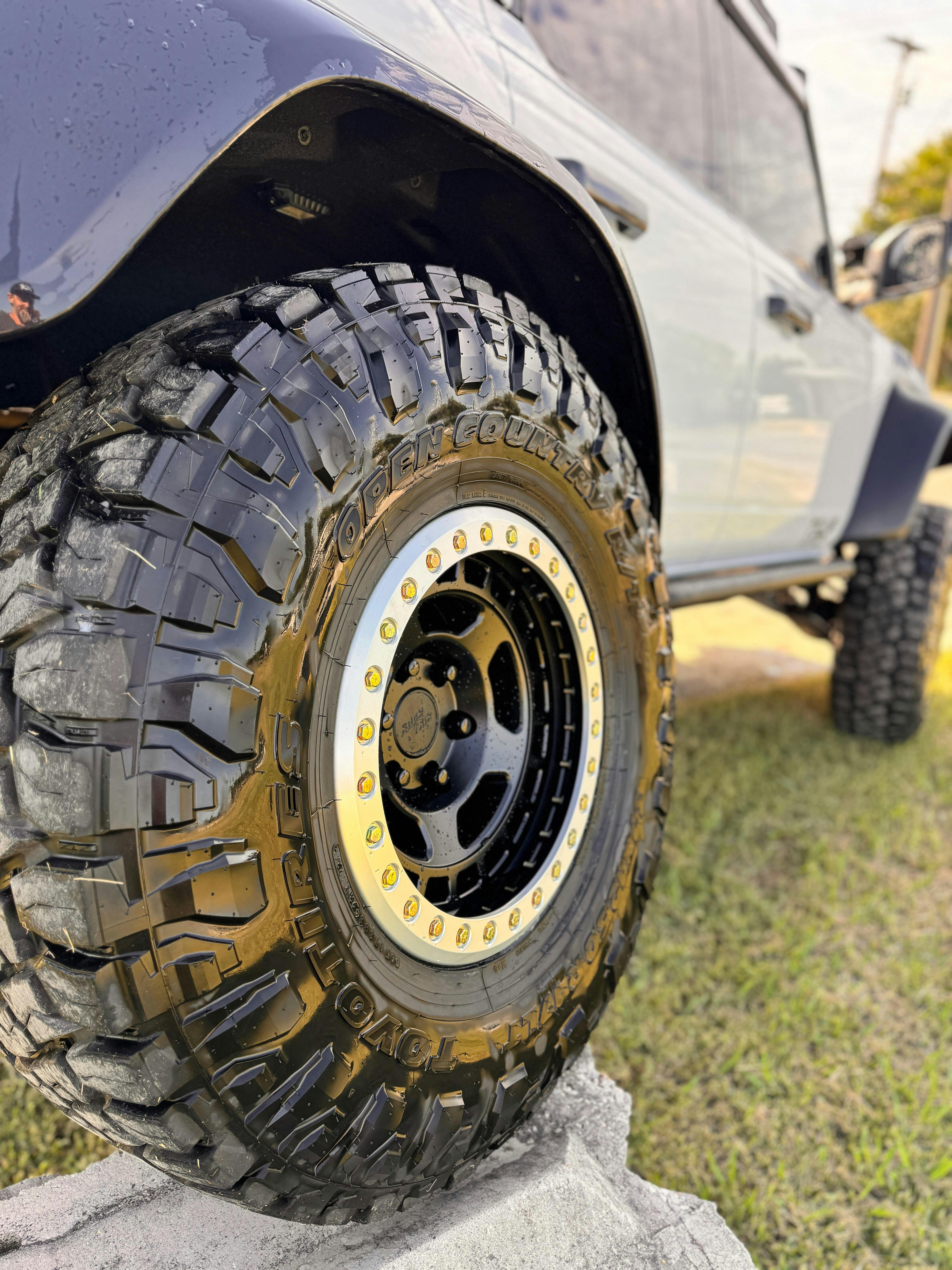

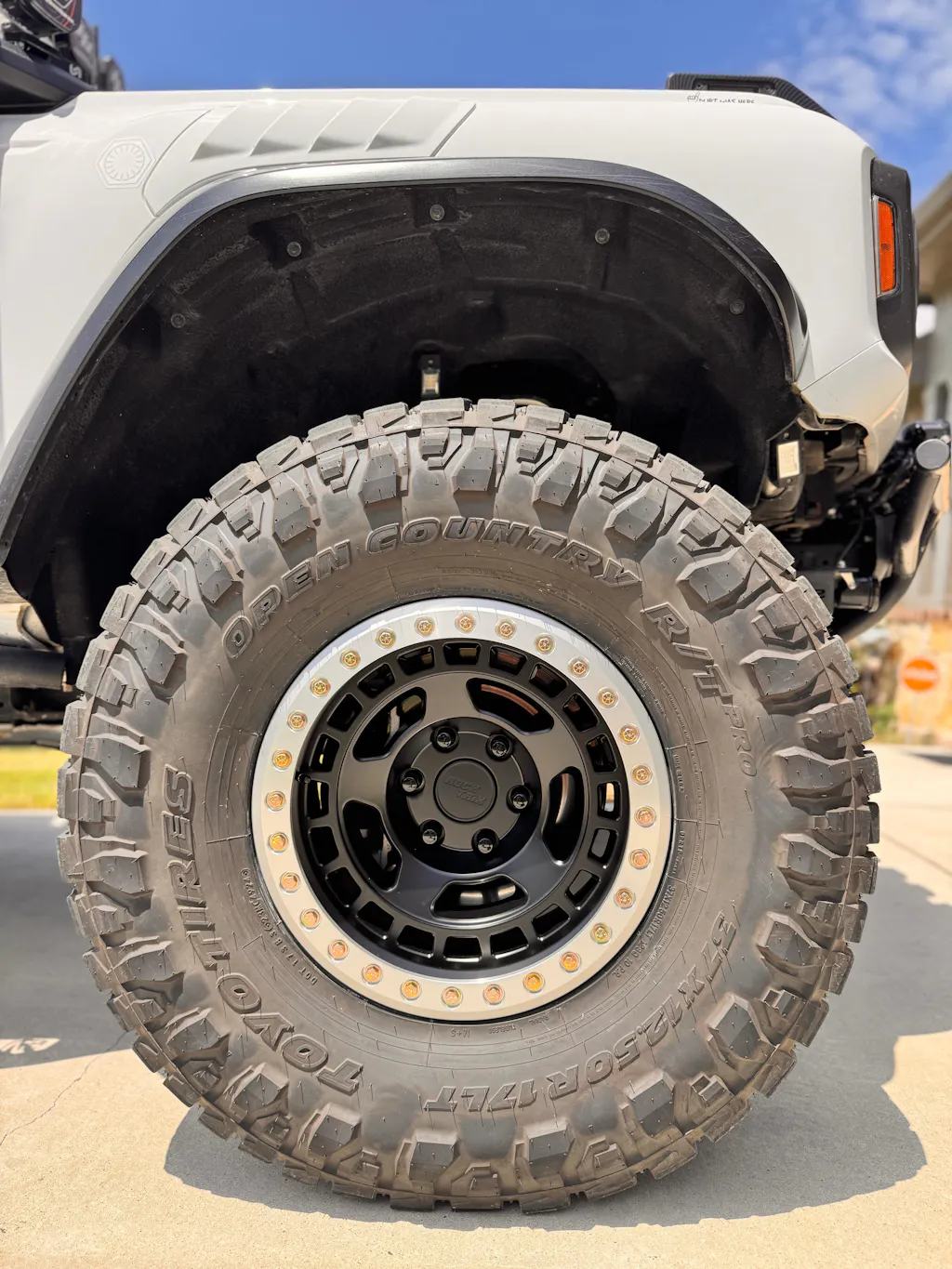

After 3 years with my RT115 Matte Bronze’s, it was time for a step up into beadlocks! The quality of the finish has never diminished, despite not always cleaning my wheels accordingly. I knew that going to the BL would guarantee me the same fit and finish I’ve come to enjoy from Rocktrix. These wheels are lighter than some non beadlocks on the market, which is insane. The modern 5 spoke is just an aesthetically pleasing look. If these wheel aren’t enough to sway you alone, wait till you receive the premium customer service they provide to each and every person. I paired mine with a 37” Toyo RT Pro and its a lethal combination for not just looks but offroad performance!

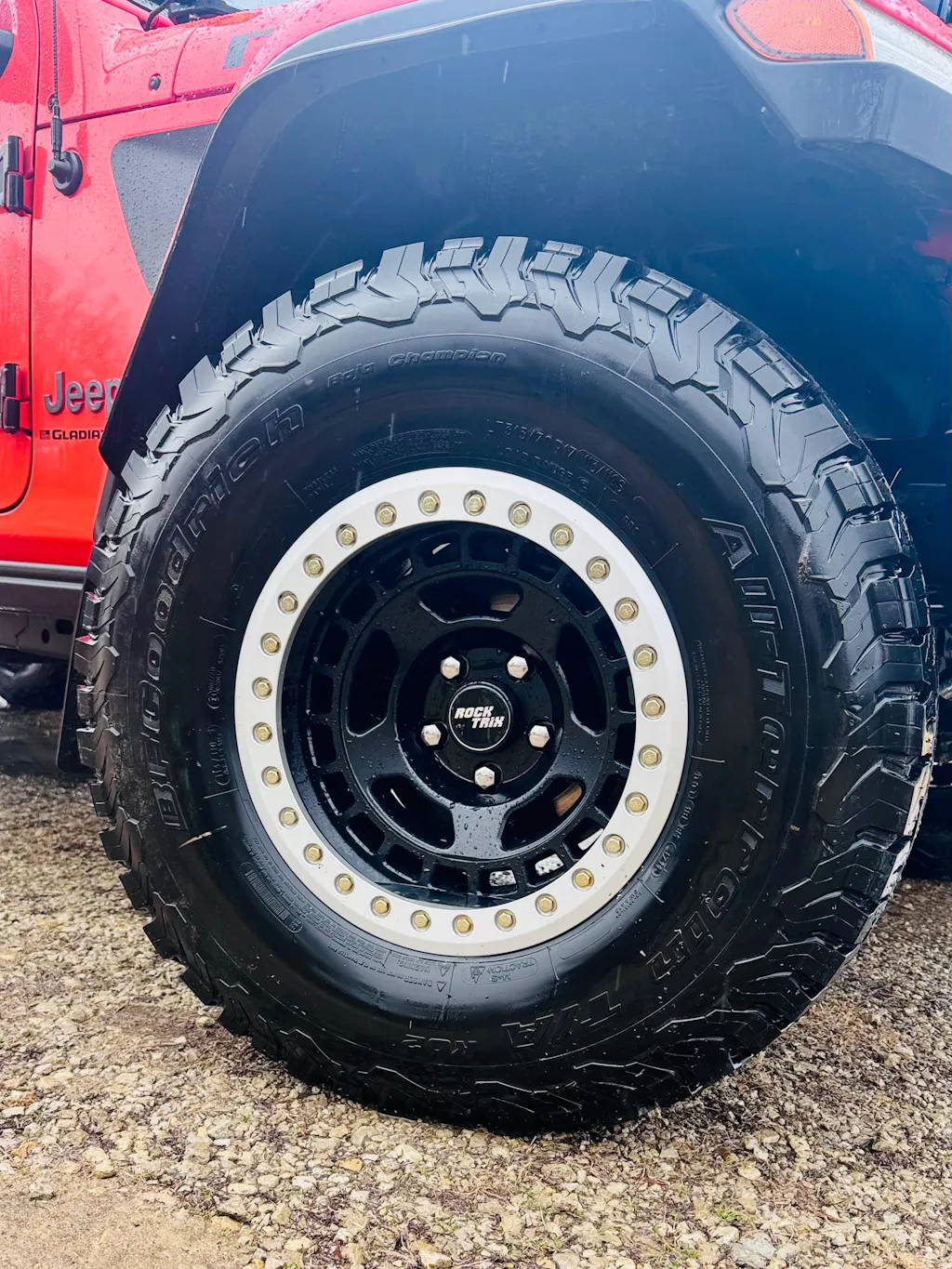

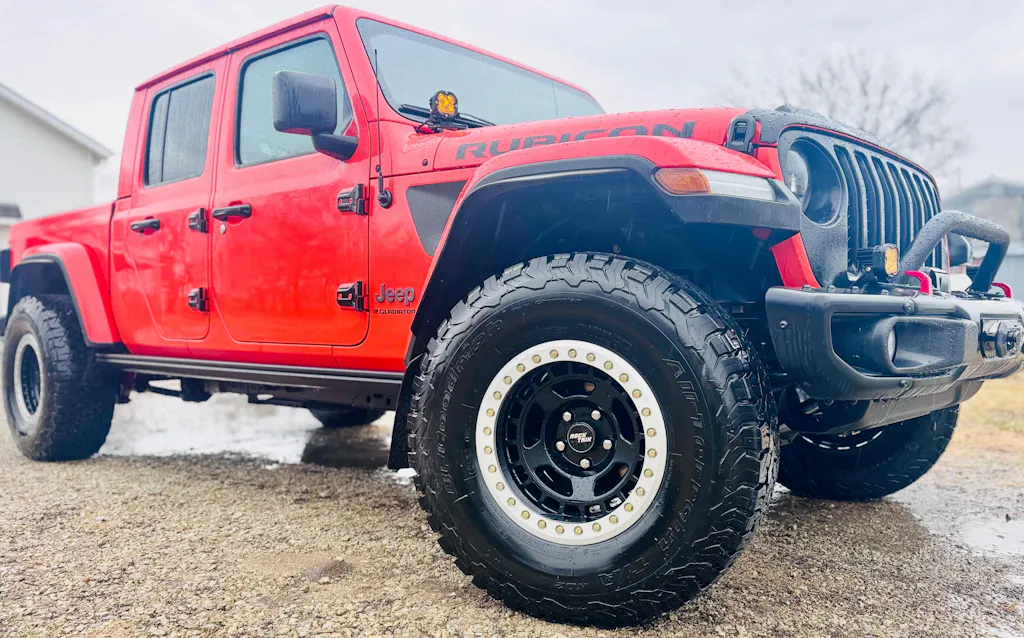

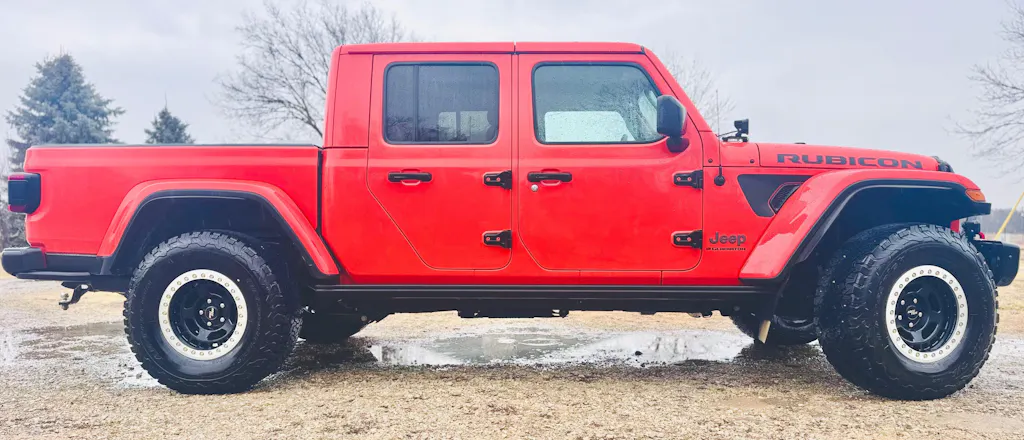

These wheels are the perfect look for my vehicle!! The quality and design is on point!! I love the fact they I am able to mount my tires in the standard fashion or mount them via the beadlock. The dual capability is perfect. I HIGHLY recommend these wheels!!
These are great looking beadlocks! I mounted a 37x13.50x17 tire and added 16oz pack of balance beads to each setup. Currently no lift on the new JL project, but will be adding the Mopar 2” lift with Fox shocks. They arrived quickly and package very well.
