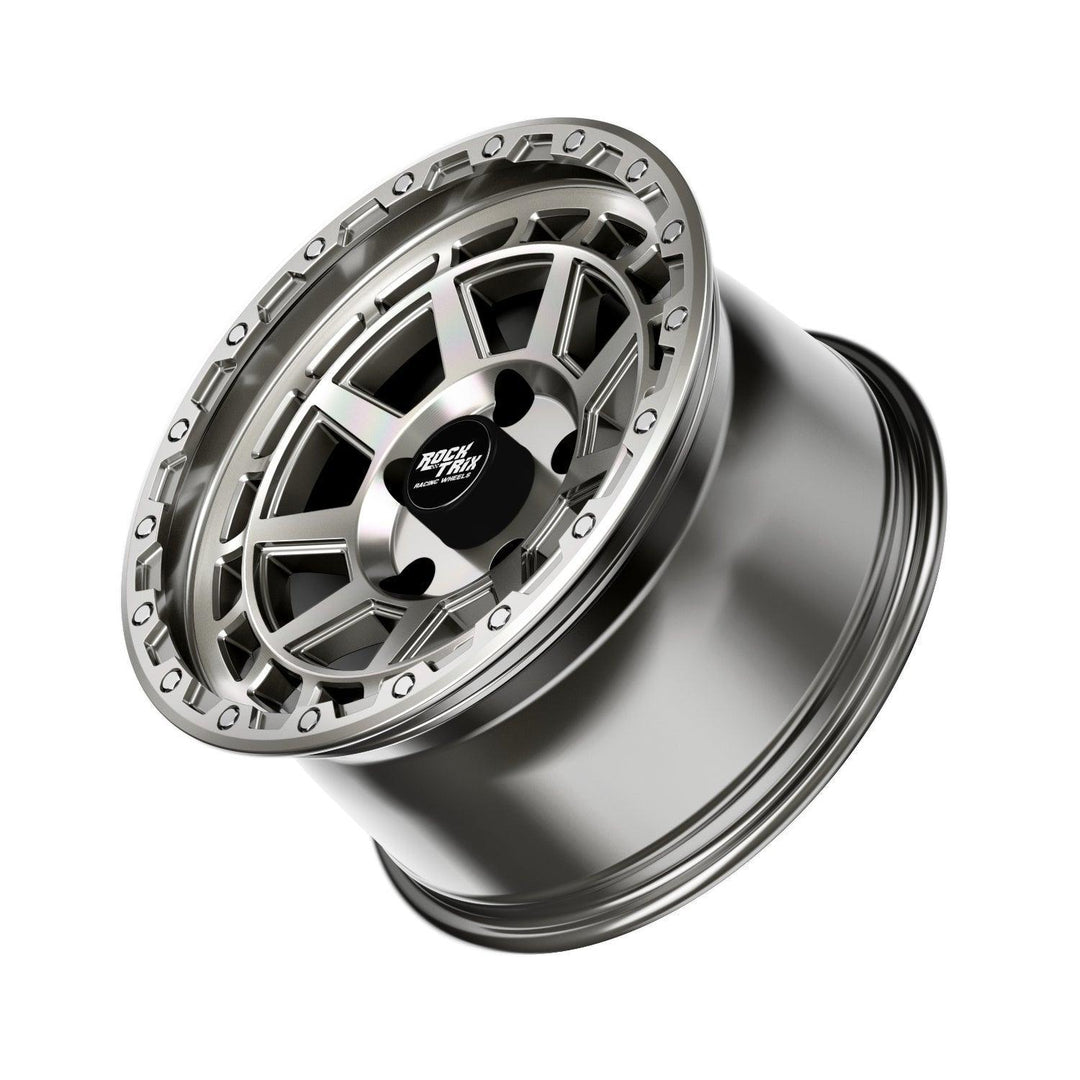

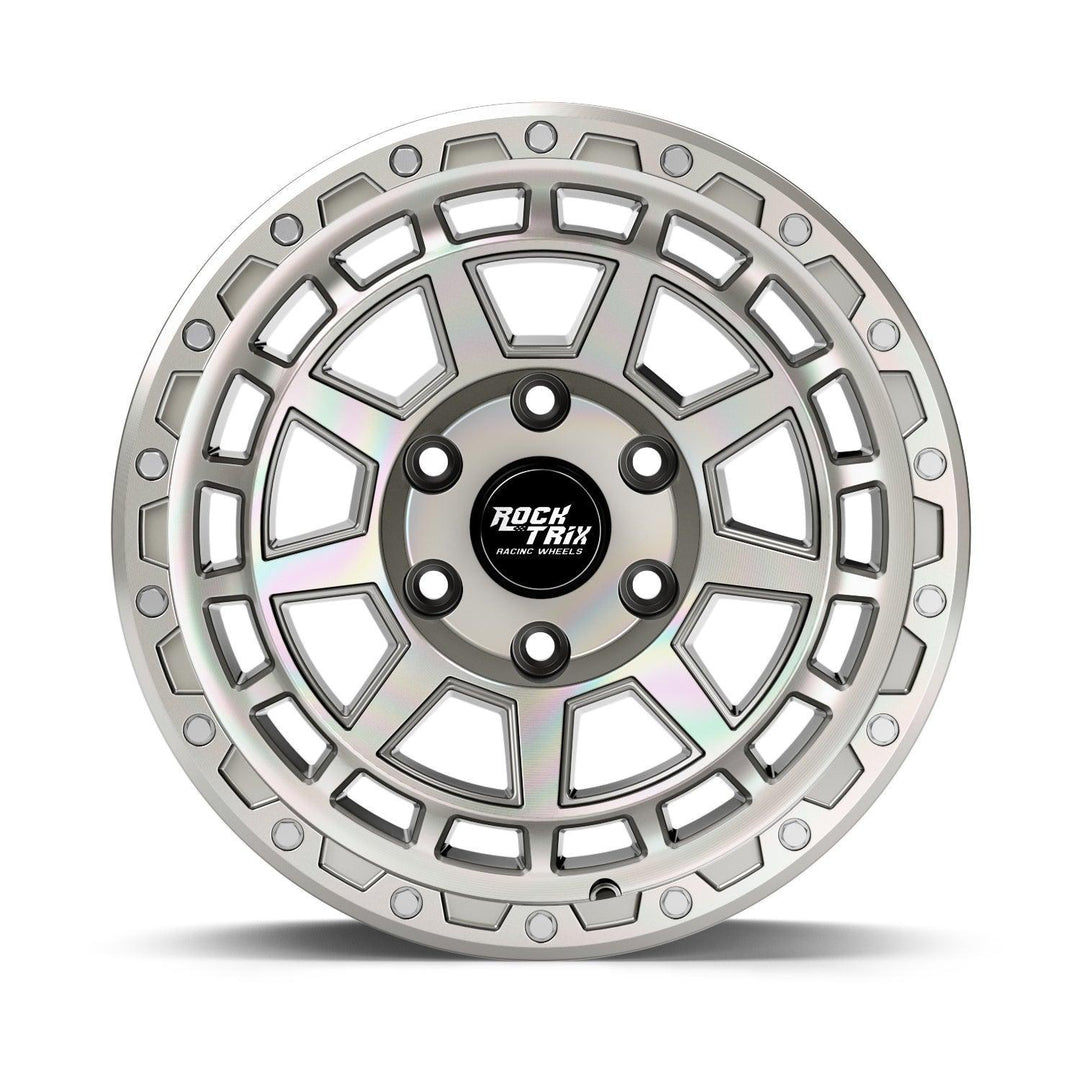

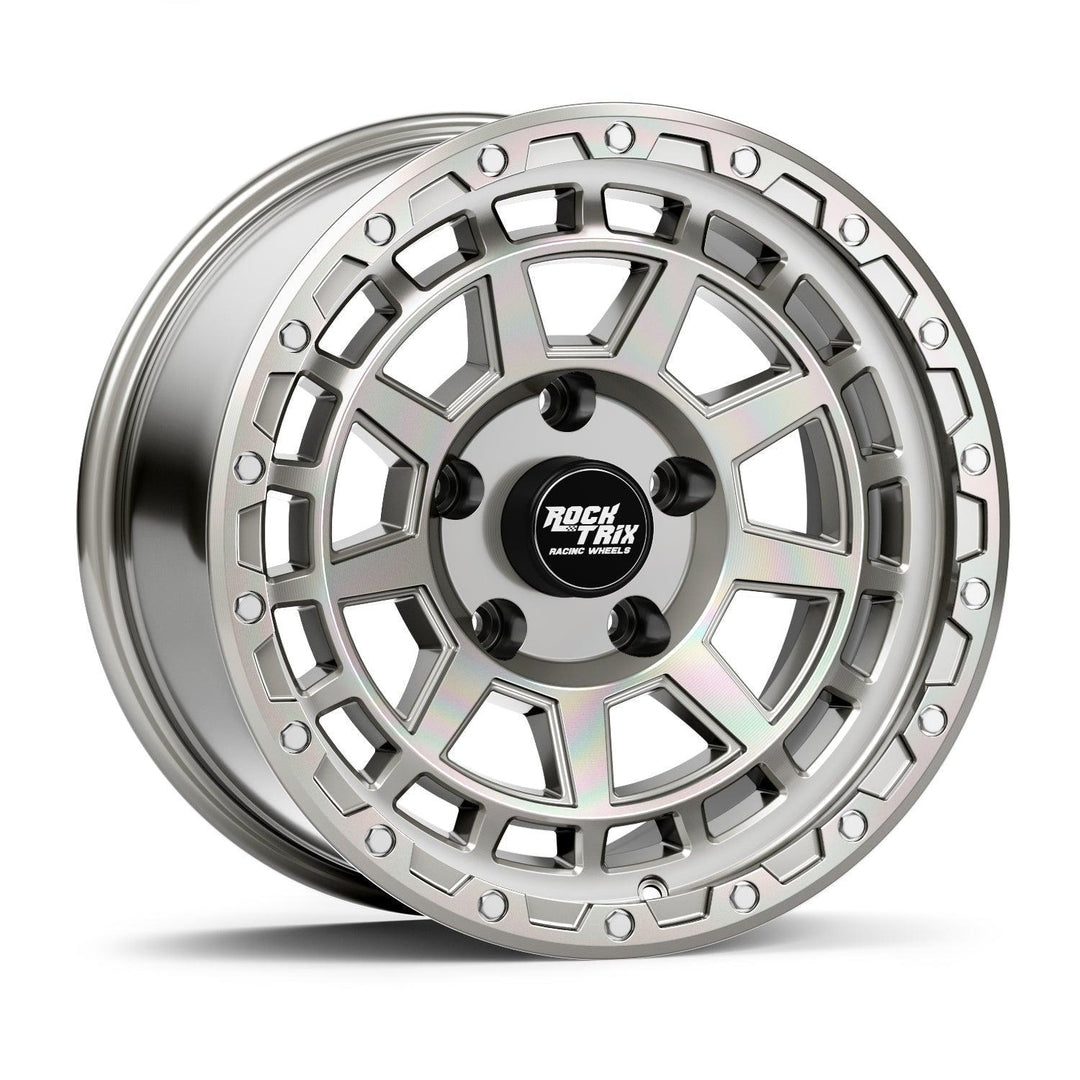

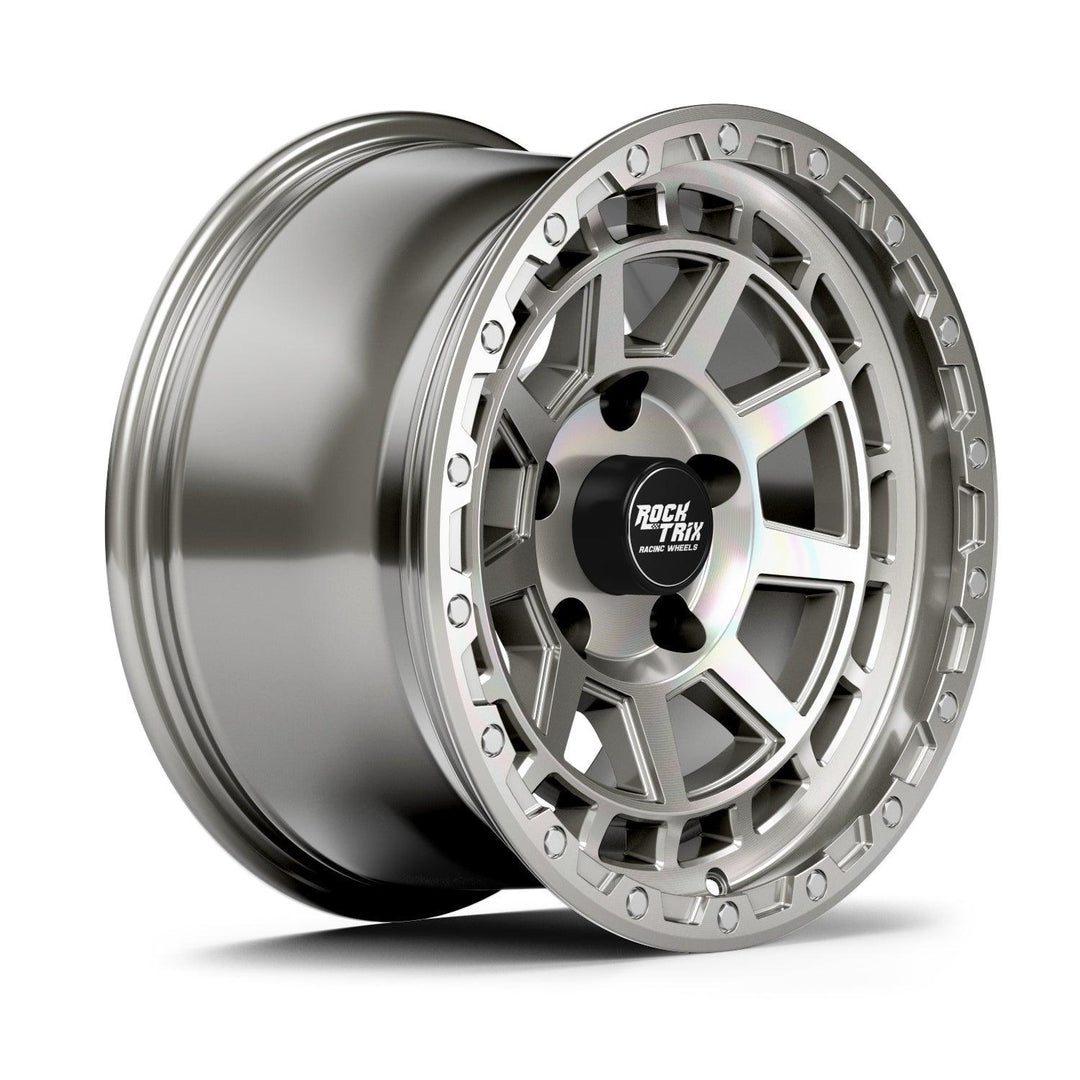

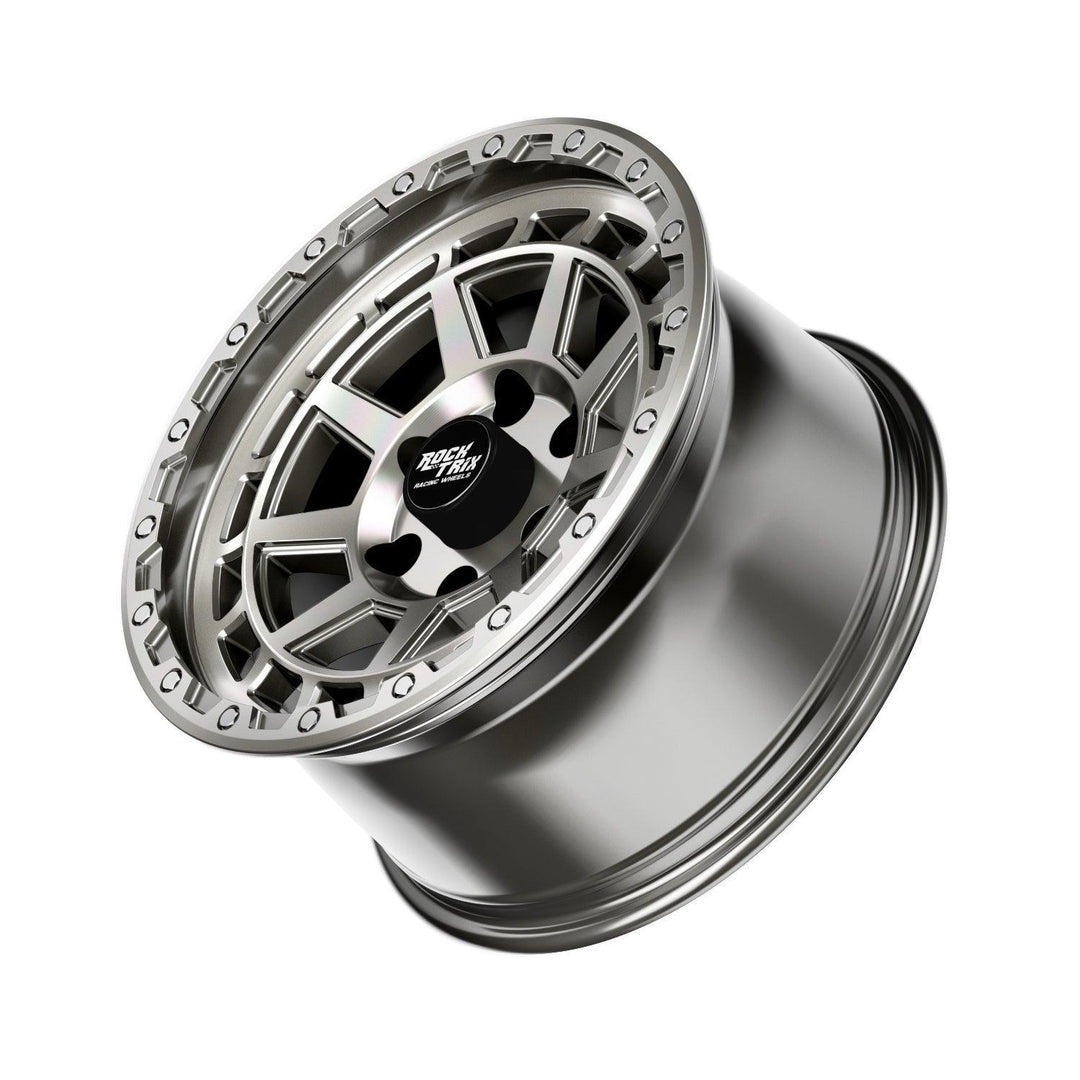

With the Rocktrix RT114, we wanted a design with flat spokes but with a bit more flare. By adding aerofins around the 9 flat spokes, we were able to create something contemporary, but classically inspired.
We've introduced this wheel in different specs including both 5 lug and 6 lug options. Popular fitments include Jeep Wrangler, Gladiator, Grand Cherokee; Toyota Tacoma, 4Runner; Ford F150, F-150 Raptor. Refer to the fitment guide below to verify fitment.
With no wheel spacers or hub adapters required, the +12 offset is approximately 1" more aggressive than your factory rims. The -12 offset gives almost 2" more clearance for bigger, wider tires over factory wheels. Fits everything from the factory 17" tires all the way up to 33, 35, 37 and beyond (Note: Lift kit required for oversized tires). Your rig will look as good as it performs!
Compatible with majority of OEM TPMS sensors, however new TPMS valve stems may be needed. NOTE: Not compatible with OE TPMS sensors on steel wheels.
NOTE: May not work with OE/Factory Lug Nuts (dependent on vehicle year/make/model). Message us with your vehicle information for assistance.
| Vehicle | PCD | Bore | Size | Offset (Backspace) | Tire Sizing Options |
|---|---|---|---|---|
| 2005-2010 Jeep Grand Cherokee (WK) * 2011-2021 Jeep Grand Cherokee (WK2) * 2006-2010 Jeep Commander (XK) *Aggressive Fitment. Fender modifications may be needed. |
5x127 | 71.5 | 17x9 | +12 (5.5) | CLICK HERE |
| 2007-2018 Jeep Wrangler JK 2018+ Jeep Wrangler JL 2019+ Jeep Gladiator JT |
5x127 | 71.5 | 17x9 | +12 (5.5) | CLICK HERE |
| 17x9 | -12 (4.5) | CLICK HERE | ||
| 18x9 | -12 (4.5) | CLICK HERE | ||
| 2008-2020 Lexus LX570 2007-2021 Toyota Land Cruiser 2008-2021 Toyota Sequoia 2007-2021 Toyota Tundra |
5x150 | 110.1 | 18x9 | -12 (4.5) | CLICK HERE |
| 18x9 | +12 (5.5) | CLICK HERE | ||
| 2004+ Ford F150 (6-Lug Trucks Only) 2022+ Ford Bronco Raptor |
6x135 | 87.1 | 17x9 | -12 (4.5) | CLICK HERE |
| 18x9 | -12 (4.5) | CLICK HERE | ||
| 2019+ Ford Ranger 2021+ Ford Bronco |
6x139.7 | 93.1 | 17x9 | +12 (5.5) | CLICK HERE |
| 18x9 | +12 (5.5) | CLICK HERE | ||
|
2023+ Chevrolet Colorado
2023+ GMC Canyon
(78.1mm-106.1mm hubring recommended) |
6x139.7 | 106.1 | 17x9 | -12 (4.5) | CLICK HERE |
|
1999+ Chevrolet Silverado 1500
2000+ Chevrolet Tahoe 1999+ GMC Sierra 1500 2000+ GMC Yukon (78.1mm-106.1mm hubring recommended) |
6x139.7 | 106.1 | 17x9 | -12 (4.5) | CLICK HERE |
| 18x9 | -12 (4.5) | CLICK HERE | ||
| 2002-2024 Toyota 4Runner (Non Manual Locking Hubs) 2001-2023 Toyota Tacoma (6-Lug Only, Non Manual Locking Hubs) 2007-2014 Toyota FJ Cruiser 1999-2006 Toyota Tundra 2001-2007 Toyota Sequoia 2010+ Lexus GX460 2003-2009 Lexus GX470 |
6x139.7 | 106.1 | 17x9 | -12 (4.5) | CLICK HERE |
| 18x9 | -12 (4.5) | CLICK HERE |
| Bolt Pattern | Bore | Size | Offset (Backspacing) |
Finish | Wheel Weight |
Load Rating |
| 5x127 | 71.5 | 17x9 | ET -12 (4.5") | Matte Black/ Bronze/ Gunmetal Machined Silver |
28 lbs | 2200 lbs |
| 17x9 | ET +12 (5.5") | Matte Black | 27 lbs | 2200 lbs | |
| 18x9 | ET -12 (4.5") | Matte Black/ Gunmetal | 31 lbs | 2500 lbs | |
| 5x150 | 110.1 | 18x9 | ET -12 (4.5") | Matte Black | 30.5 lbs | 2500 lbs |
| 18x9 | ET +12 (5.5") | Matte Black | 30 lbs | 2500 lbs | |
| 6x135 | 87.1 | 17x9 | ET -12 (4.5") | Matte Black/ Bronze | 27 lbs | 2200 lbs |
| 18x9 | ET -12 (4.5") | Matte Black | 30 lbs | 2500 lbs | |
| 6x139.7 | 93.1 | 17x9 | ET +12 (5.5") | Matte Black/ Gunmetal | 28 lbs | 2200 lbs |
| 18x9 | ET +12 (5.5") | Matte Black | 29.5 lbs | 2500 lbs | |
| 6x139.7 | 106.1 | 17x9 | ET -12 (4.5") | Matte Black/ Bronze/ Gunmetal/ Machined Silver |
26 lbs | 2200 lbs |
| 18x9 | ET -12 (4.5") | Matte Black/ Bronze/ Gunmetal | 30 lbs | 2500 lbs |
| Vehicle | Lug Nut Thread Size | Lug Nut Options |
|---|---|---|
|
1/2"x20 |
Click here |
|
M14x1.5 |
Click here |
|
M14x2 | Click here |
|
M12x1.5 | Click here |
|
M12x1.5 ET |
Click here |
|
M14x1.5 ET | Click here |

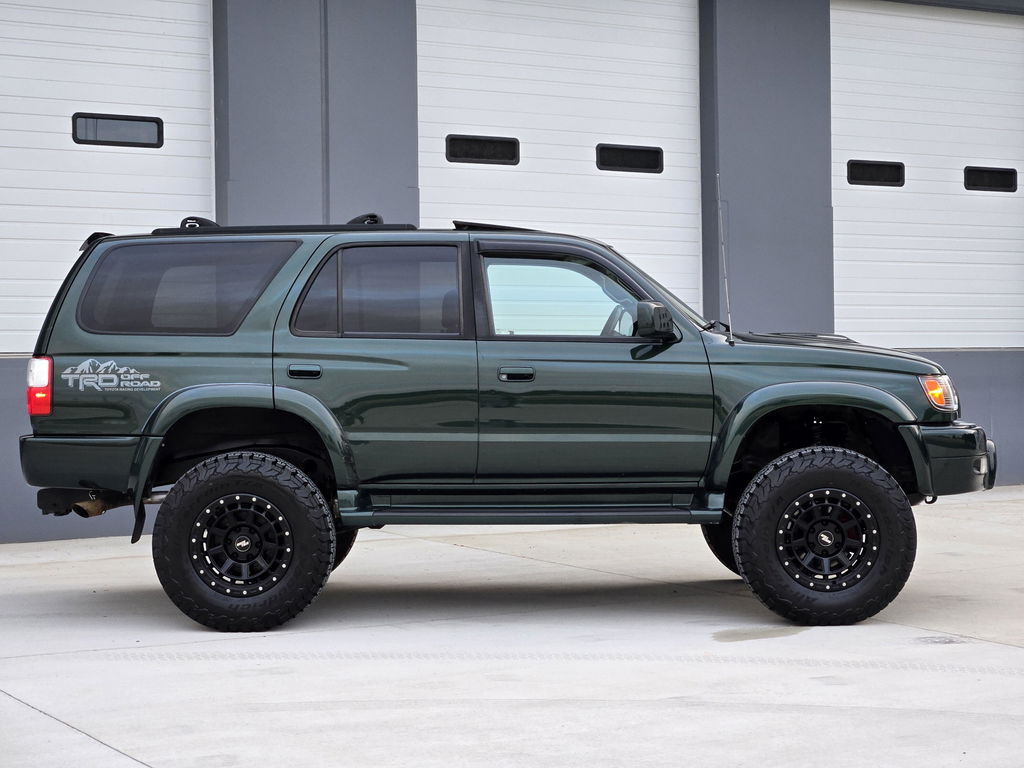

Just mounted a set of 17x9 RT114’s in bronze on the wife’s 2004 4Runner just leveled using Tacoma bilstein 4600 struts. Absolute game changer. Finally made it sit just how I wanted. The -12 offset give it just a little poke outside the fender line which is great looking. With taking that negative offset into account, I went with a 265/70r17 instead of a 285/70r17. Had a very slight scrub while turning but a heat gun to plastics can fix that or you could always pull your caster number lower moving the wheel and tire forwards. The finish looks great and based on review I don’t see any issues in the near future. Shopping was fast and free and they were packaged really well. Would definitely buy again and may in the near future for another 4Runner I have
Great wheels for the price and fast shipping!
It certainly gave my truck a different look and style. For the prize it sure surpass my expectations. Great product.
Look great in my 2019 ford ranger lariat 4x4. 2nd set of Rocktrixs. 1st set was on my polaris RZR Pro Xp Ultimate
